Increase the storage capacity of your Dell™ System with 960GB Solid State Drive from Dell. It boasts a storage capacity of up to 960GB, enabling users to store large amounts of data. This drive delivers enhanced data transfer speed of up to 12Gbps.
- Offers up to 960GB storage capacity
- Equipped with SAS interface which delivers high data transfer rate
- Solid State design offers ruggedness and fast data access
Benefits of SSD over spin drives: :
- More Durable: Feature a non-mechanical design of NAND flash mounted on circuit boards and are more shock resistant.
- Faster: Faster data access, boot ups, file transfers, and an overall quicker computing experience than hard drives.
- Quieter: Run at near silent operation unlike loud, whirring hard disc drives.
- Lighter: Flash-based SSDs weigh considerably less.
- Cooler: SSDs require little power to operate, resulting in less heat output by your system.
- More Efficient: Consume less power at peak load.
Tech Specs
Type : Solid state drive - Read-Intensive Endurance, advanced format 512e
Capacity : 960 GB

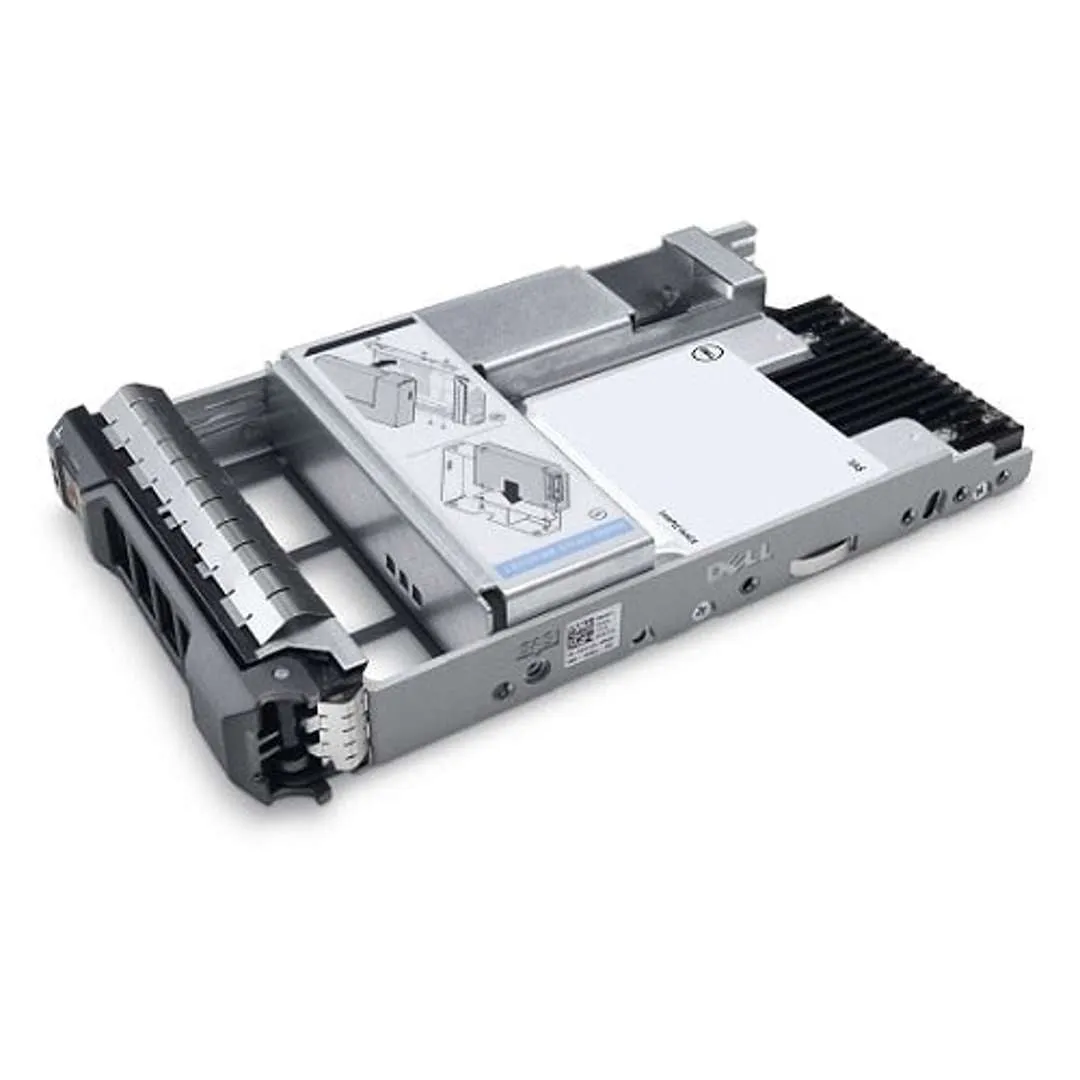

Form Factor : 2.5" (in 3.5" carrier)
Interface : SAS 12Gb/s
Data Transfer Rate : 1.2 GBps
Features : Read-Intensive Endurance, advanced format 512e
Designed For : PowerEdge R720, R720xd, T440, T630, T640; PowerVault MD1400; PowerEdge R630, R730, R730xd, T440, T640; PowerVault ME4012
General
Device Type : Solid state drive
Capacity : 960 GB
Form Factor : 2.5"
Interface : SAS 12Gb/s
Features : Read-Intensive Endurance, advanced format 512e
Performance
Drive Writes Per Day (DWPD) : 1
SSD Endurance : 1752 TB
Drive Transfer Rate : 1.2 GBps (external)
Expansion & Connectivity
Interfaces : 1 x SAS 12 Gb/s
Compatible Bay : 2.5" or 3.5" (with included bay adapter)
Miscellaneous
Included Accessories : 3.5" hybrid carrier
OEM Manufacturer Equivalent Part Number : Toshiba KPM5XRUG960G
Compatibility Information
Designed For :
- Dell PowerEdge R720, R720xd, T440, T630, T640
- Dell PowerVault MD1400
- Dell EMC PowerEdge R630, R730, R730xd, T440, T640
- Dell EMC PowerVault ME4012
Compatibility
This product is compatible with the following systems:
- PowerEdge R630
- PowerVault MD1400
- PowerEdge R730
- PowerEdge R720
- PowerEdge T640
- PowerEdge T440
- PowerEdge T630
- PowerVault ME412
- PowerEdge R730xd XL
- PowerEdge R730XD
- PowerVault ME4012
